Main Input Voltage | 230 V |
|---|---|
Main Output Voltage | 230 V |
Rated power in W | 780 W |
Rated power in VA | 1300 VA |
Product or component type | Uninterruptible power supply (UPS) |
Input Connection Type | IEC 60320 C13 |

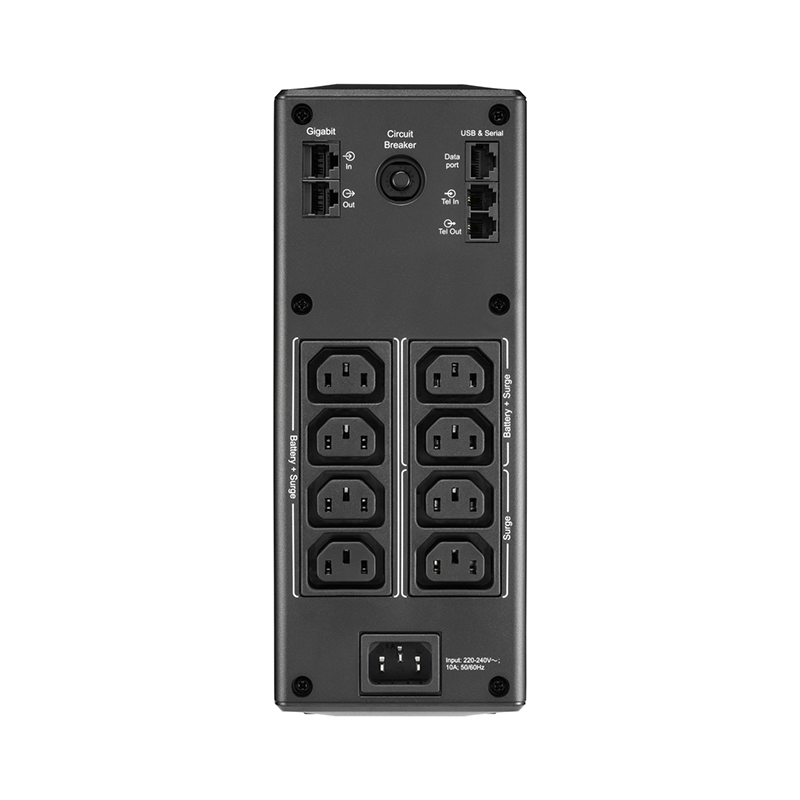

output connection type | 6 IEC 60320 C13 2 IEC 60320 C13 surge |
Battery type | Lead-acid battery |
รันไทม์ | |
|---|---|
ประสิทธิภาพ | |
Number of battery filled slots | 0 |
Number of battery free slots | 0 |
Battery recharge time | 16 h |
Number of battery replacement quantity | 1 |
Battery voltage | 24 V |
battery capacity | 6.0 Ah |
Battery charger power | 11 W rated |
Battery life | 3…5 year(s) |
Replacement battery | |
Extended runtime | 0 |
Provided equipment | User manual USB cable |
|---|---|
Number of power module free slots | 0 |
Number of power module filled slots | 0 |
Redundant | No |
Colour | Black |
|---|---|
height | 10 cm |
Width | 25 cm |
Depth | 38.2 cm |
Net weight | 10.2 kg |
Mounting preference | No preference |
Mounting mode | Not rack-mountable |
Two post mountable | 0 |
USB compatible | No |
Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
|---|---|
Input voltage limits | 176...294 V |
Maximum input current | 10 A |
Switching current capacity | 10 A |
Maximum configurable power in W | 780 W |
|---|---|
Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
UPS type | Line interactive |
Maximum configurable power in VA | 1300 VA |
product certifications | A-Tick C-Tick CE EAC RCM TISI |
|---|---|
Marking | GS Mark |
Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Ambient air temperature for operation | 0…40 °C |
|---|---|
Relative humidity | 0…95 % non-condensing |
Operating altitude | 0...10000 ft |
Ambient air temperature for storage | -15…45 °C |
Storage Relative Humidity | 0…95 % non-condensing |
Storage altitude | 0.00…15240.00 m |
Acoustic level | 45 dBA |
heat dissipation | 21.5 Btu/h |
control panel | Multifunction LCD status and control console |
|---|---|
Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge energy rate | 509 J |
|---|---|
Noise suppression | Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous |
Unit Type of Package 1 | PCE |
|---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 33 cm |
Package 1 Width | 22.5 cm |
Package 1 Length | 48.5 cm |
Package 1 Weight | 11.85 kg |
SCC14 | 10731304346903 |
