Main Input Voltage | 208 V 230 V |
|---|---|
Other Input Voltage | 220 V 240 V |
Main Output Voltage | 208 V 230 V |
Other Output Voltage | 220 V 240 V |
Rated power in W | 1980 W |
Rated power in VA | 2200 VA |
Input Connection Type | IEC 320 C20 Schuko CEE 7 / EU1-16P BS1363A British |

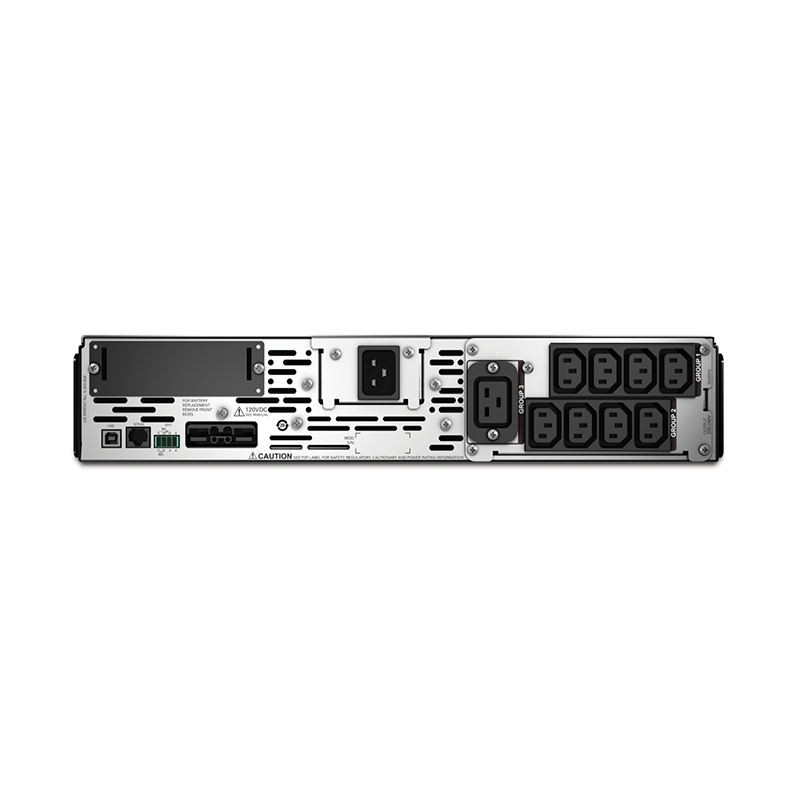

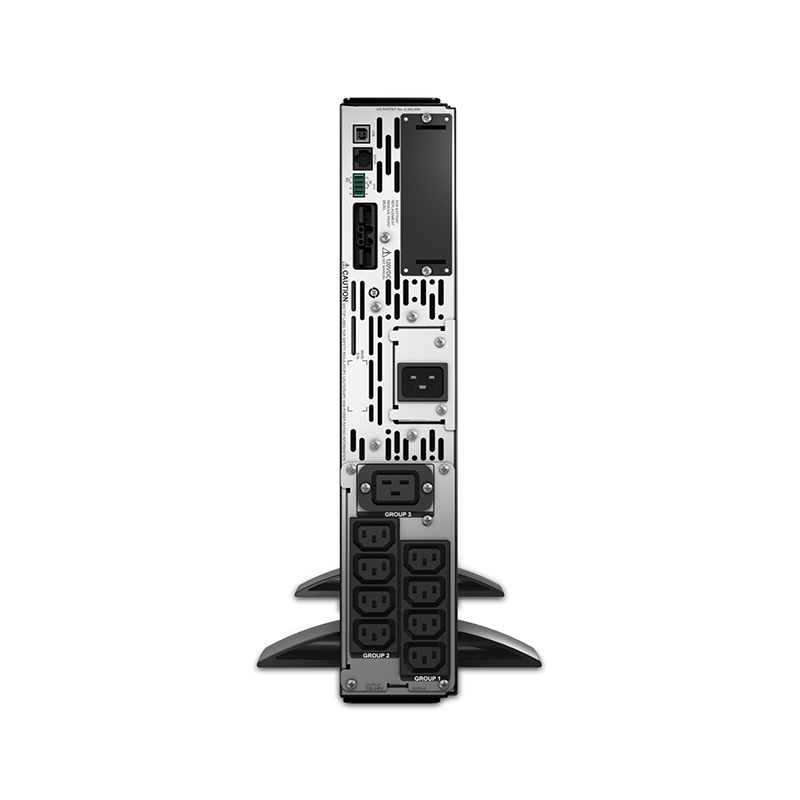

output connection type | 8 IEC 320 C13 2 IEC Jumpers 1 IEC 320 C19 |
Number of rack unit | 2U |
Cable length | 1.83 m |
Number of cables | 1 |
Battery type | Lead-acid battery |
Provided equipment | CD with software Documentation CD Smart UPS signalling RS-232 cable User manual USB cable Rack mounting brackets |
รันไทม์ | |
|---|---|
ประสิทธิภาพ | |
Extended runtime | 1 |
Number of battery filled slots | 0 |
Number of battery free slots | 0 |
Battery recharge time | 3 h |
Number of battery replacement quantity | 1 |
Battery life | 3…5 year(s) |
Replacement battery | |
Battery charger power | 233 W rated |
Number of power module | 1750 |
|---|---|
Number of power module filled slots | 0 |
Number of power module free slots | 0 |
product web sub-family | Extended run |
Redundant | No |
Colour | Black |
|---|---|
height | 8.5 cm |
Width | 43.2 cm |
Depth | 66.7 cm |
Net weight | 37.32 kg |
Mounting location | Front |
Mounting preference | Lower |
Mounting mode | Rack-mounted |
Two post mountable | 0 |
USB compatible | Yes |
Input voltage limits | 140...280 V |
|---|---|
Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
Harmonic distortion | Less than 5 % |
|---|---|
Maximum configurable power in VA | 2200 VA |
Maximum configurable power in W | 1980 W |
Transfer time | 2-4 ms 6 ms typical : 10 ms maximum |
UPS type | Line interactive |
Wave type | Sine wave |
Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
product certifications | CE CSA EAC IRAM RCM VDE |
|---|---|
Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Acoustic level | 55 dBA |
|---|---|
heat dissipation | 150 Btu/h |
Operating altitude | 0...10000 ft |
Ambient air temperature for operation | 0…40 °C |
Ambient air temperature for storage | -15…45 °C |
Storage altitude | 0.00…15240.00 m |
Relative humidity | 0…95 % |
Storage Relative Humidity | 0…95 % |
control panel | LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators Multifunction LCD status and control console |
|---|---|
Emergency power off | Yes |
Free slots | 1 |
Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge energy rate | 645 J |
|---|---|
Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Unit Type of Package 1 | PCE |
|---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 24.3 cm |
Package 1 Width | 59.6 cm |
Package 1 Length | 86.9 cm |
Package 1 Weight | 45.36 kg |
Unit Type of Package 2 | PAL |
Number of Units in Package 2 | 8 |
Package 2 Height | 111 cm |
Package 2 Width | 100 cm |
Package 2 Length | 120 cm |
Package 2 Weight | 384 kg |
Pallet unit layers | 2 |
Pallet layers | 4 |
