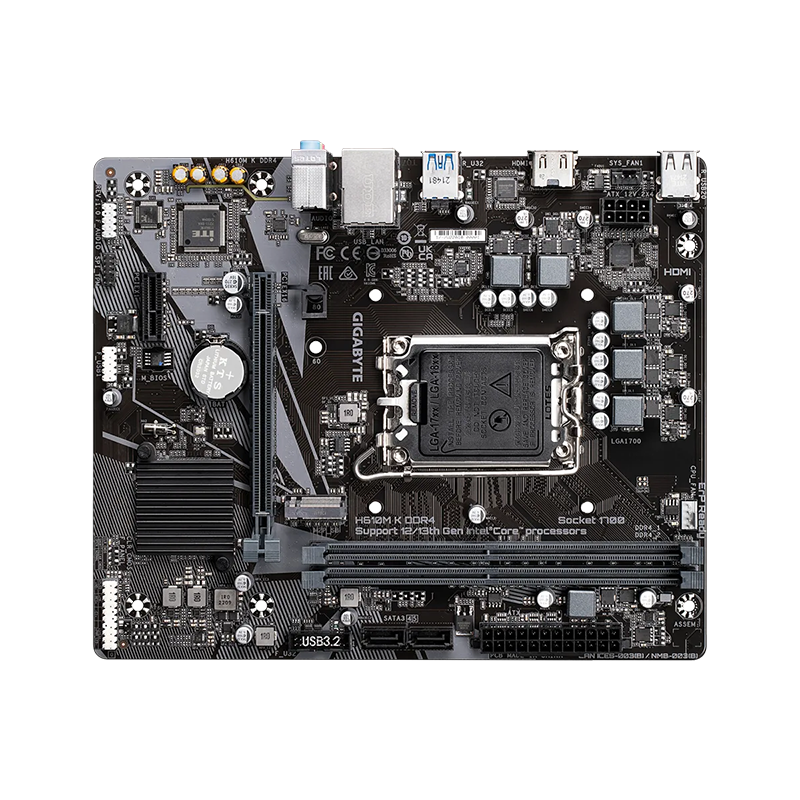

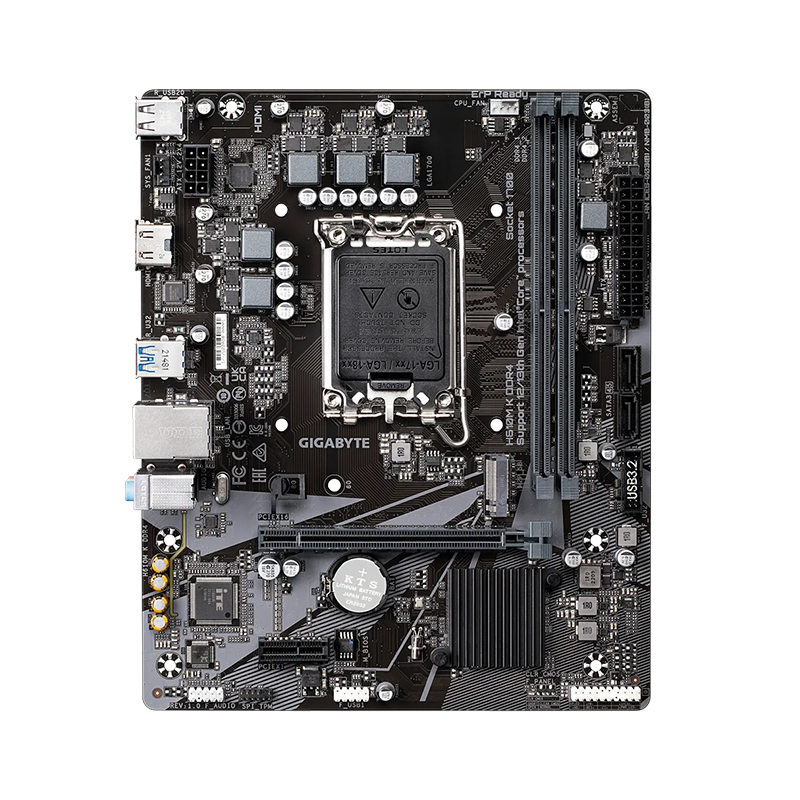

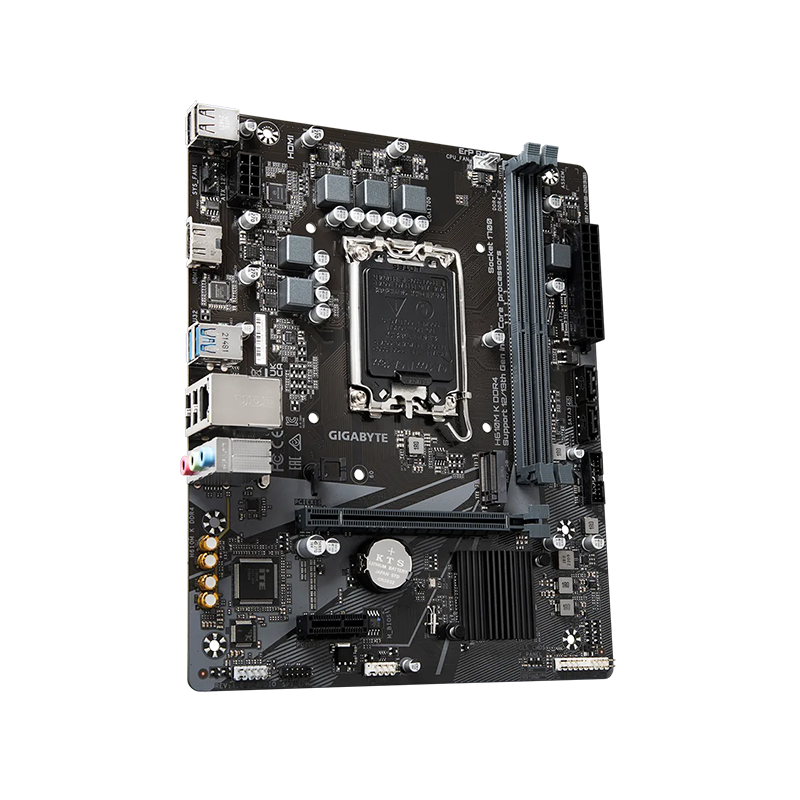

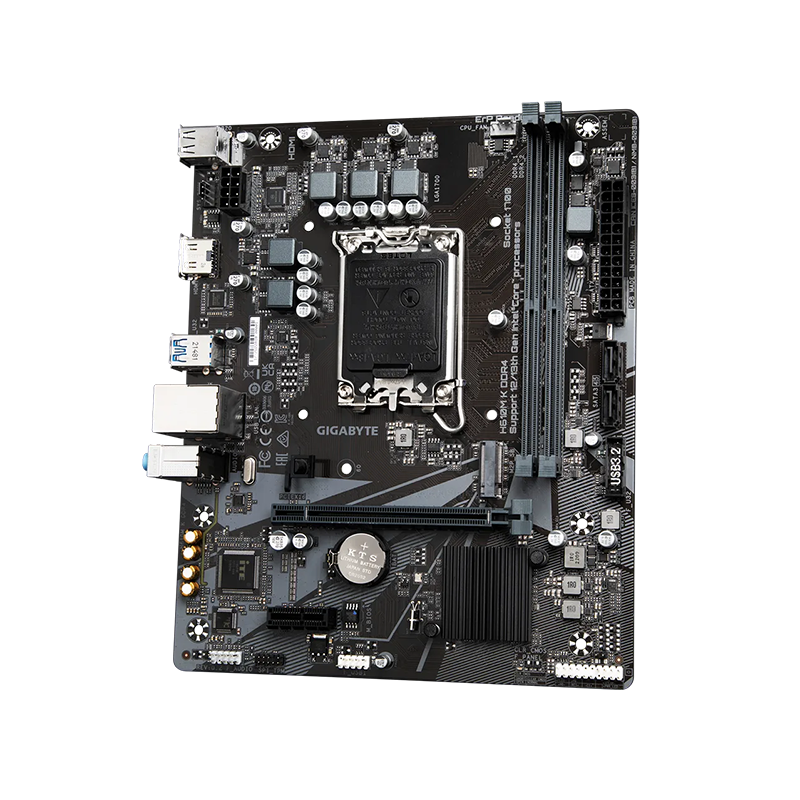

Gigabyte H610M K DDR4

1. Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules

2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

3. Dual channel memory architecture

4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Integrated Graphics Processor-Intel® HD Graphics support:

1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

1. Realtek® Audio CODEC

2. High Definition Audio

3. 2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)

CPU:

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)

2. 2 x SATA 6Gb/s connectors

Chipset:

1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

1. 1 x 24-pin ATX main power connector

2. 1 x 8-pin ATX 12V power connector

3. 1 x CPU fan header

4. 1 x system fan header

5. 1 x M.2 Socket 3 connector

6. 2 x SATA 6Gb/s connectors

7. 1 x front panel header

8. 1 x front panel audio header

9. 1 x USB 3.2 Gen 1 header

10. 1 x USB 2.0/1.1 header

11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

12. 1 x Clear CMOS jumper

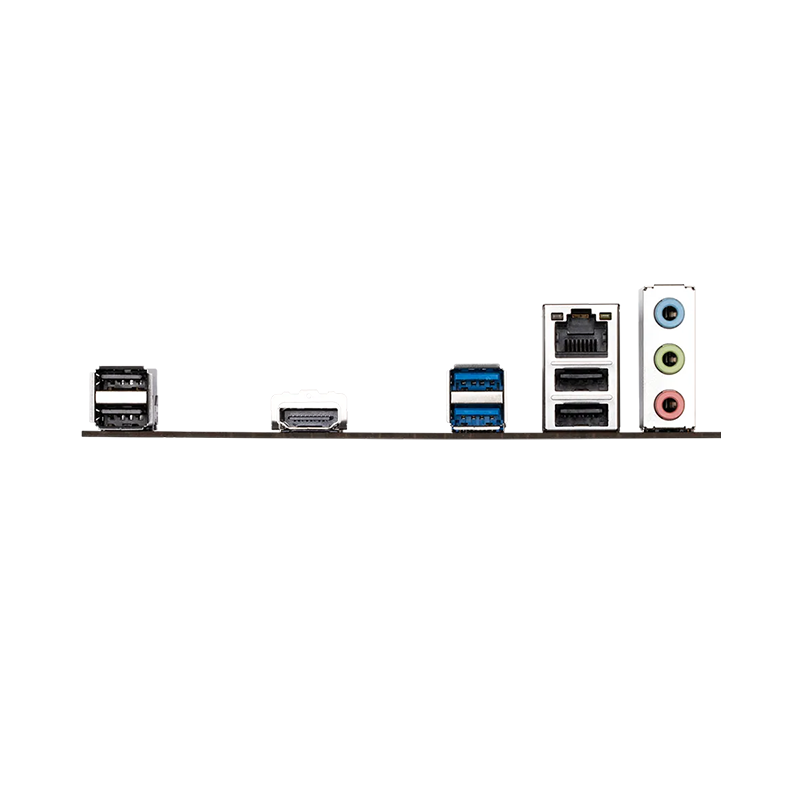

1. 1 x HDMI port

2. 2 x USB 3.2 Gen 1 ports

3. 4 x USB 2.0/1.1 ports

4. 1 x RJ-45 port

5. 3 x audio jacks

1. iTE® I/O Controller Chip

1. Voltage detection

2. Temperature detection

3. Fan speed detection

4. Water cooling flow rate detection

5. Fan fail warning

6. Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

1. 1 x 128 Mbit flash

2. Use of licensed AMI UEFI BIOS

3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

EasyTune

Smart Backup

System Information Viewer

2. Support for Q-Flash

3. Support for Xpress Install

1. Norton® Internet Security (OEM version)

2. LAN bandwidth management software

1. Support for Windows 11 64-bit

2. Support for Windows 10 64-bit

1. Micro ATX Form Factor; 22.6cm x 18.5cm
