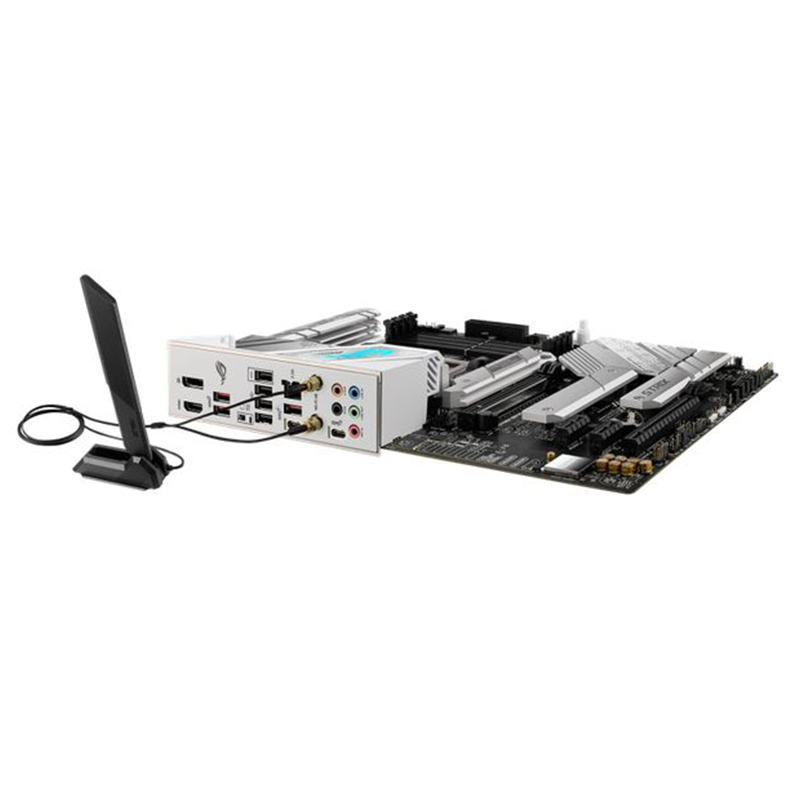

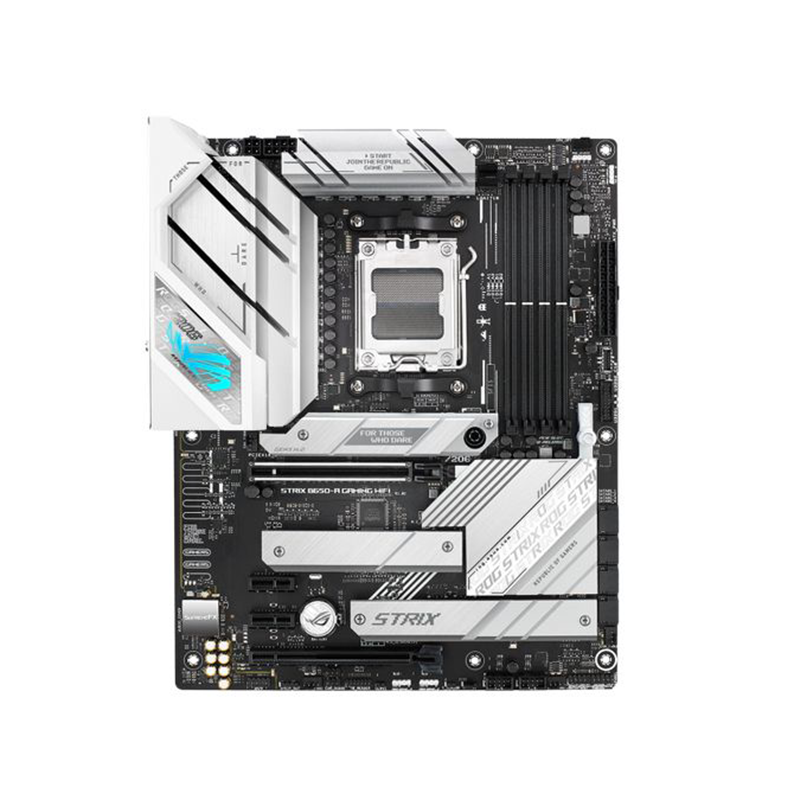

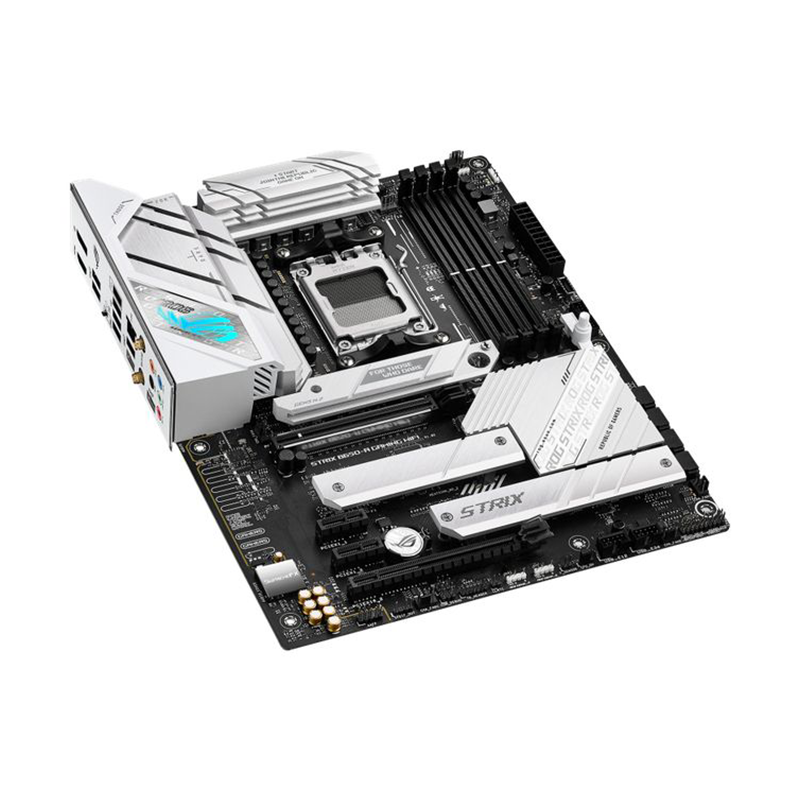

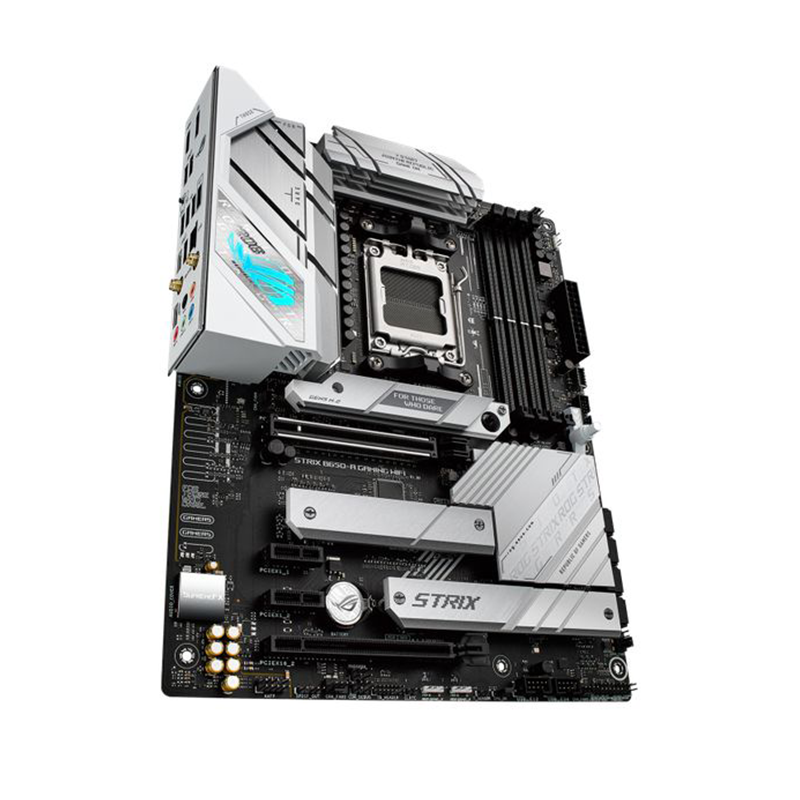

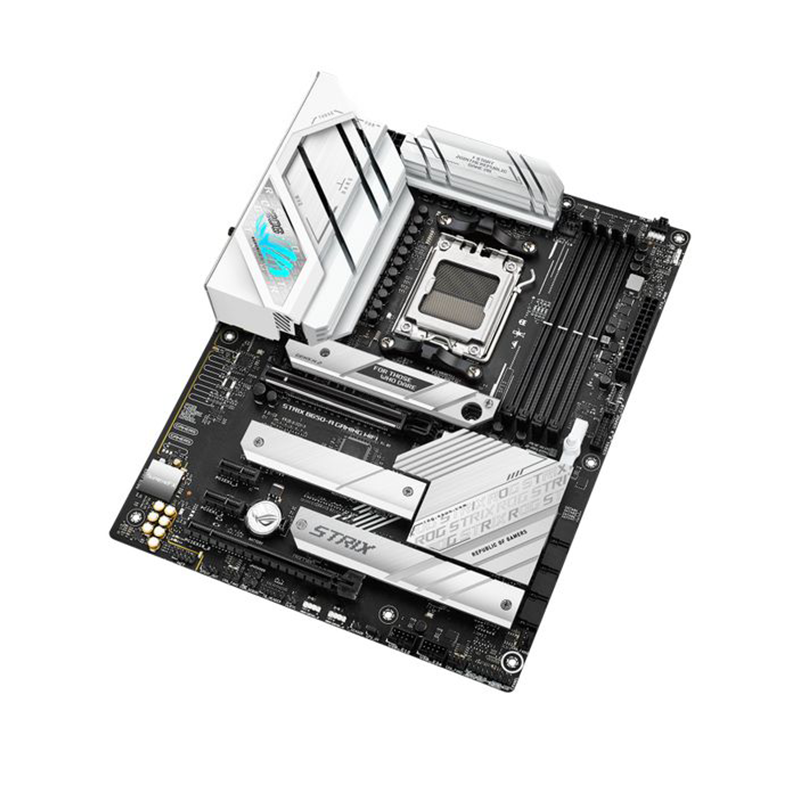

ASUS ROG STRIX B650-A GAMING WIFI DDR5

CPU

AM5 Socket for AMD Ryzen™ Desktop Processorss*

* Refer to www.asus.com for CPU support list.

Chipset

AMD B650

Memory

4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports AMD EXTended Profiles for Overclocking (EXPO™)

OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

Graphics

1 x DisplayPort*

1 x HDMI® port**

* Supports max. 8K@60Hz as specified in DisplayPort 1.4.

**Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

AMD Ryzen™ 7000 Series Desktop Processors

1 x PCIe 4.0 x16 slot

AMD B650 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)*

2 x PCIe 4.0/3.0 x1 slots

* PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3.

Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD B650 Chipset

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**

4 x SATA 6Gb/s port

*AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

** M.2_3 slot shares bandwidth with PCIe 4.0 x16 slot (supports x4 mode) When M.2_3 slot is operating in PCIe mode, M.2_3 will be disabled.

Ethernet

1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2

* Wi-Fi 6E 6GHz regulatory may vary between countries, and function will be

ready in Windows 11 or later.

USB

Rear USB (Total 9 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers supports additional 4 USB 2.0 ports

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

 - Impedance sense for front and rear headphone outputs

 - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

 - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

 - Supports up to 32-Bit/384 kHz playback

Audio Features

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover

*The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

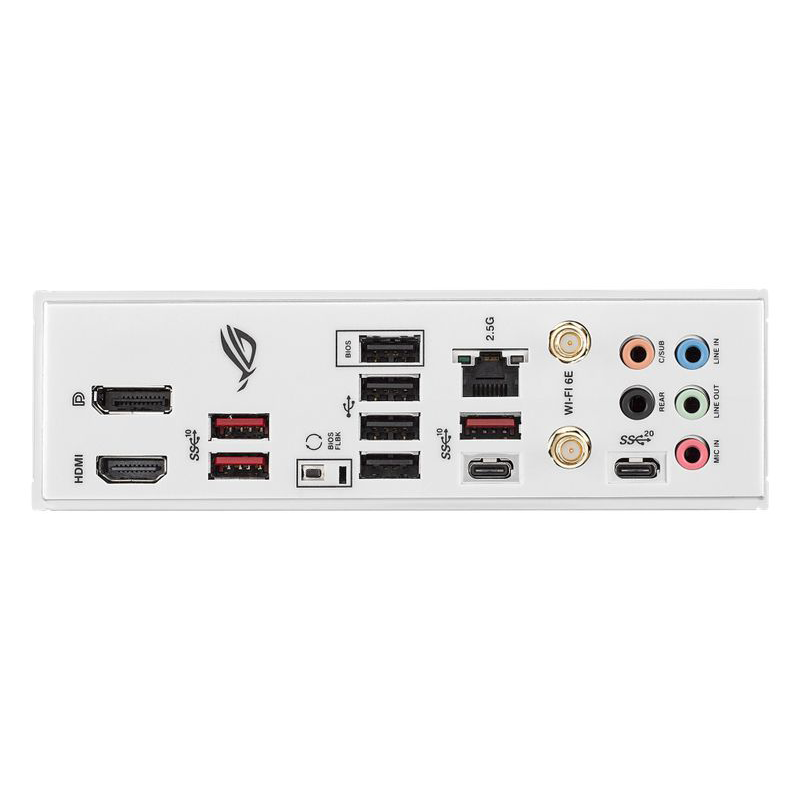

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack™  button

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers supports additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™header

1 x COM_DEBUGheader

Special Features

Extreme Engine Digi+

- 5K Black Metallic Capacitors

ASUS Q-Design

- M.2 Q-Latch

- PCIe Slot Q-Release

- Q-LED

- Q-DIMM

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- ProCool

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

AURA Sync

- AURA RGB header

- Addressable Gen 2 headers

Software Features

ROG Exclusive Software

- GameFirst VI

- ROG CPU-Z

- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion

- Sonic Radar III

- DTS® Sound Unbound

- Anti-virus software

ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (60 days free trial)

- AURA Creator

- AURA Sync

- Fan Xpert 4

- Power Saving

- Two-Way AI Noise Cancellation

AI Suite 3

- TPU

- DIGI+ VRM

- Turbo app

- PC Cleaner

MyAsus

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

FlexKey

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Additional Cooling Kit

1 x Thermal pad for M.2

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Cable ties pack

1 x M.2 Q-Latch package

1 x ROG key chain

1 x ROG Strix stickers

1 x ROG Strix thank you card

2 x M.2 Rubber Packages

Documentation

1 x User guide

Operating System

Windows® 11 64-bit

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
