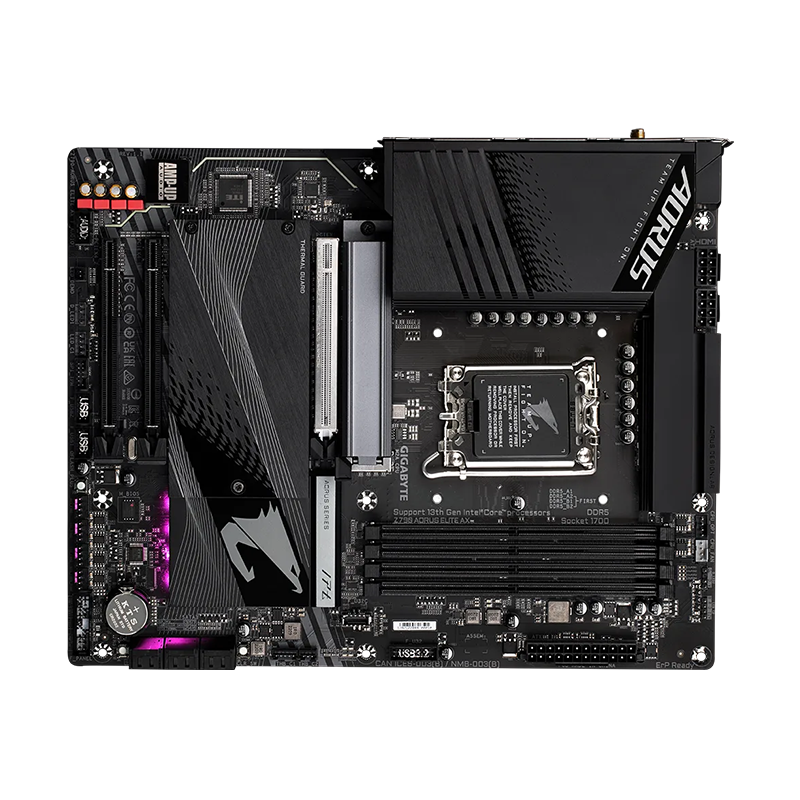

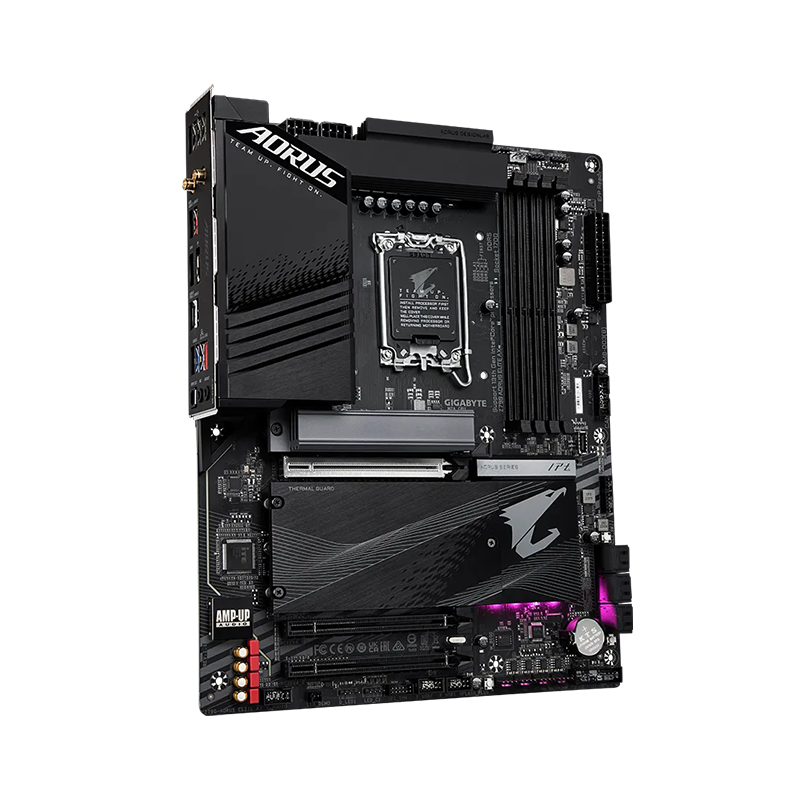

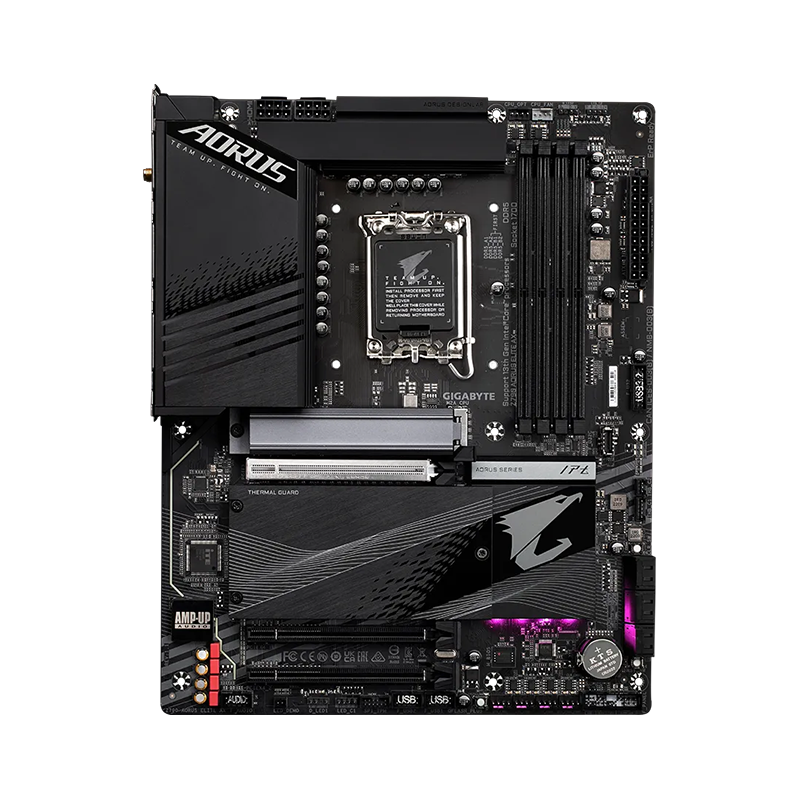

Gigabyte Z790 AORUS ELITE AX DDR5

Processor

1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset

1. Intel® Z790 Express Chipset

Memory

1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

3. Dual channel memory architecture

4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

6. Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60

* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

Audio

1. Realtek® Audio CODEC

2. High Definition Audio

3. 2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

4. Support for S/PDIF Out

LAN

1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Intel® Wi-Fi 6E AX211 (For PCB rev. 1.0 / 1.1)

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

2. BLUETOOTH 5.3

3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.2)

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

2. BLUETOOTH 5.3

3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate may vary depending on environment and equipment.

Expansion Slots

CPU:

1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)

2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

IDE ATA

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)

2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)

3. 6 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

* Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

USB

Chipset:

1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support

2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

4. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector

2. 2 x 8-pin ATX 12V power connectors

3. 1 x CPU fan header

4. 1 x water cooling CPU fan header

5. 3 x system fan headers

6. 1 x system fan/water cooling pump header

7. 2 x addressable LED strip headers

8. 2 x RGB LED strip headers

9. 4 x M.2 Socket 3 connectors

10. 6 x SATA 6Gb/s connectors

11. 1 x front panel header

12. 1 x front panel audio header

13. 1 x USB Type-C® header, with USB 3.2 Gen 2 support

14. 1 x USB 3.2 Gen 1 header

15. 2 x USB 2.0/1.1 headers

16. 2 x Thunderbolt™ add-in card connectors

17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

18. 1 x reset button

19. 1 x Q-Flash Plus button

20. 1 x Clear CMOS button

21. 1 x reset jumper

22. 1 x Clear CMOS jumper

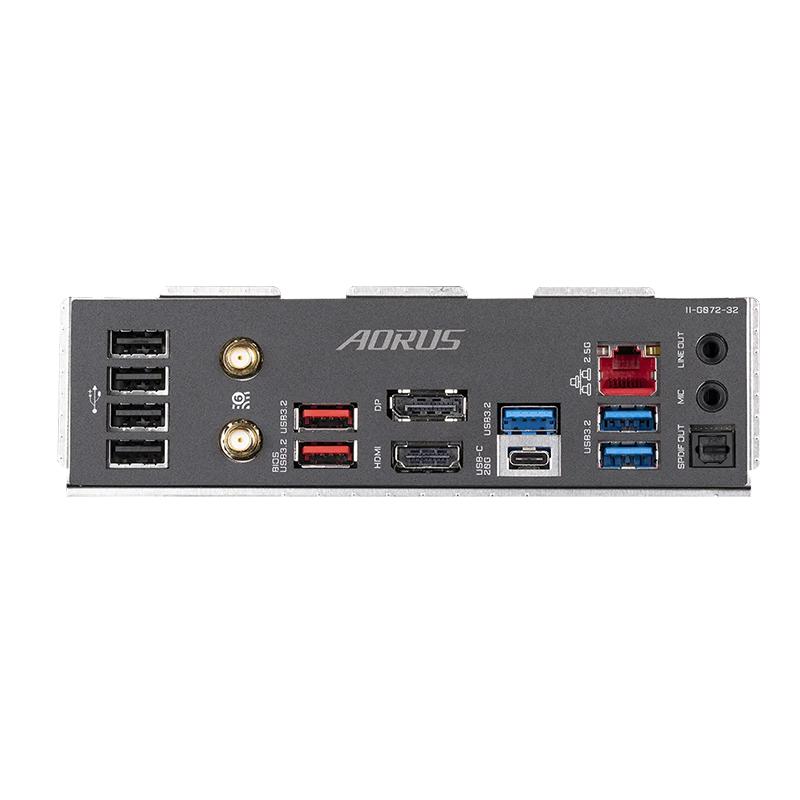

Rear Panel I/O

1. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

2. 2 x USB 3.2 Gen 2 Type-A ports (red)

3. 3 x USB 3.2 Gen 1 ports

4. 4 x USB 2.0/1.1 ports

5. 2 x SMA antenna connectors (2T2R)

6. 1 x HDMI 2.0 port

7. 1 x DisplayPort

8. 1 x RJ-45 port

9. 1 x optical S/PDIF Out connector

10. 2 x audio jacks

I/O

1. iTE® I/O Controller Chip

H/W Monitoring

1. Voltage detection

2. Temperature detection

3. Fan speed detection

4. Water cooling flow rate detection

5. Fan fail warning

6. Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

1. 1 x 256 Mbit flash

2. Use of licensed AMI UEFI BIOS

3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

2. Support for Q-Flash

3. Support for Q-Flash Plus

4. Support for Smart Backup

Bundle Software

1. Norton® Internet Security (OEM version)

2. LAN bandwidth management software

Operating System

1. Support for Windows 11 64-bit

2. Support for Windows 10 64-bit

Form Factor

1. ATX Form Factor; 30.5cm x 24.4cm
