Product Number: TS-832PXU-RP-4G

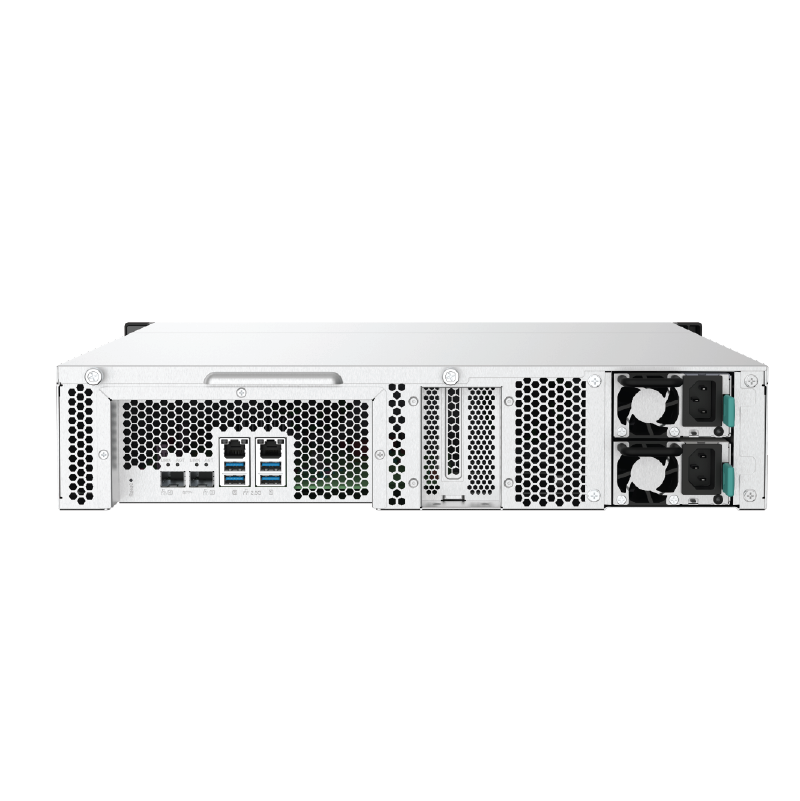

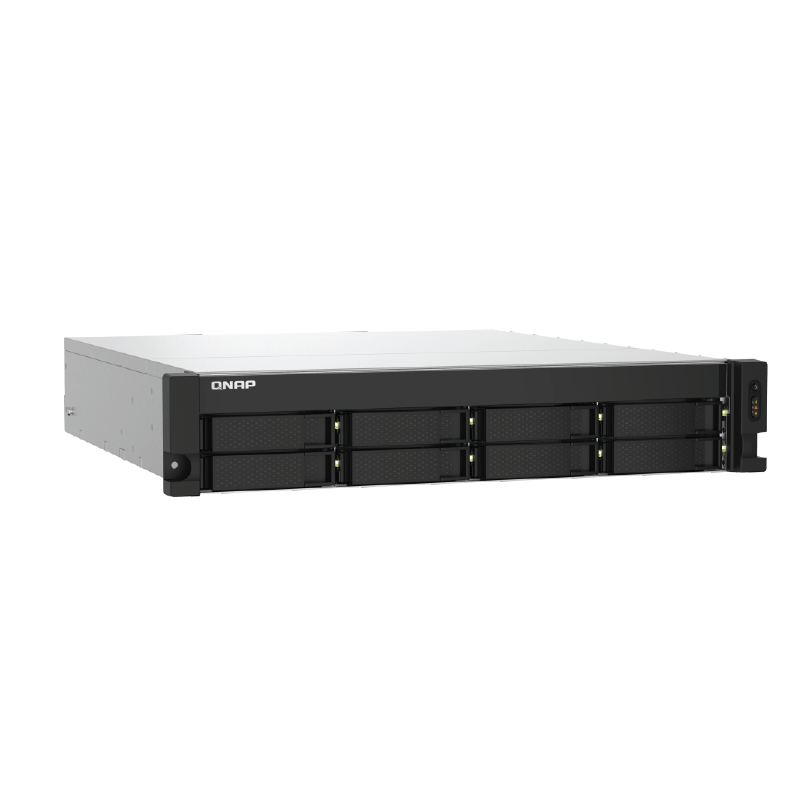

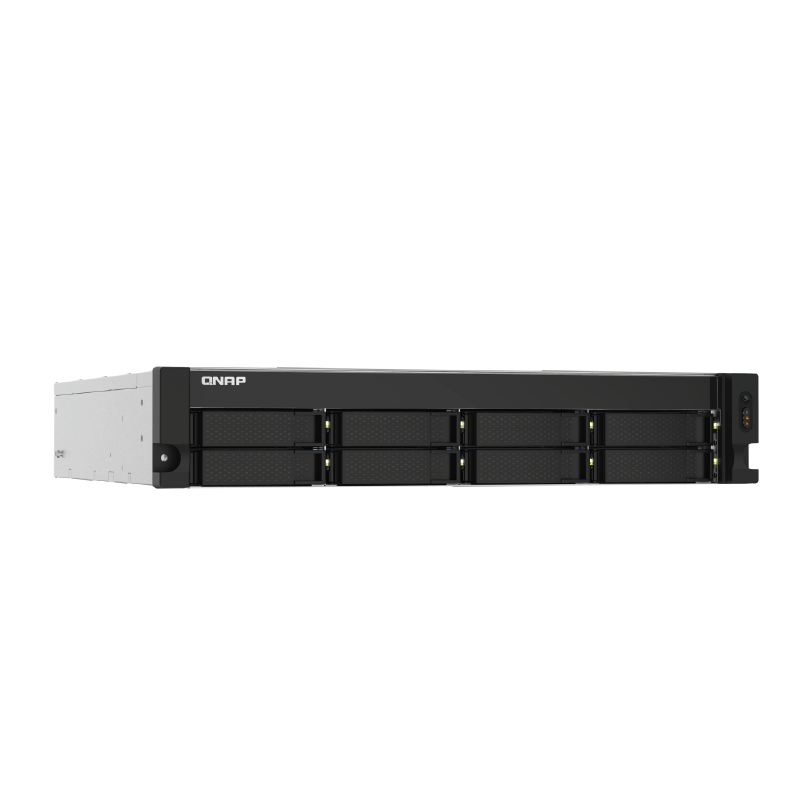

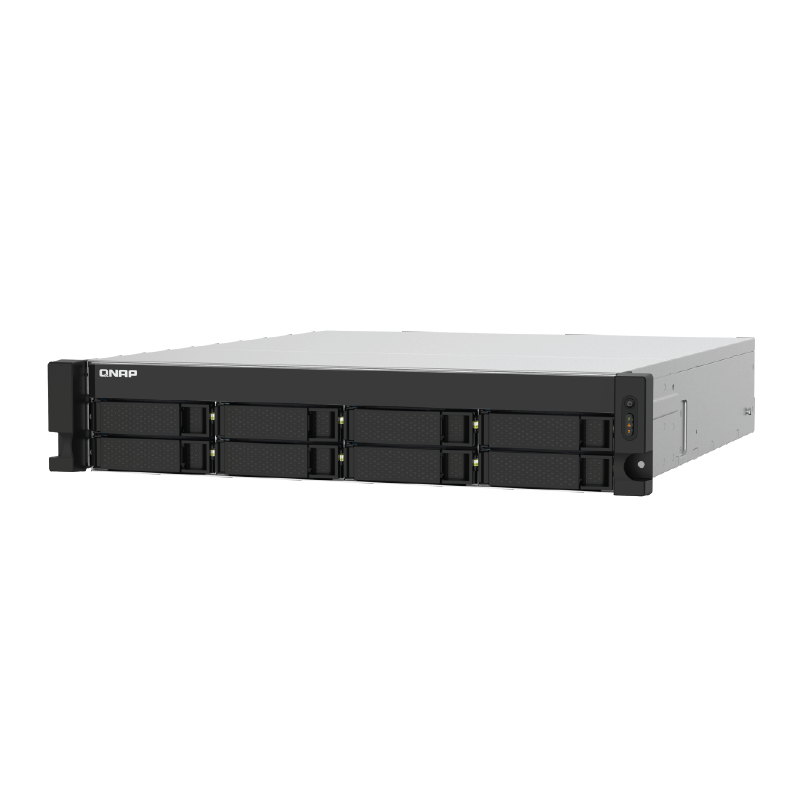

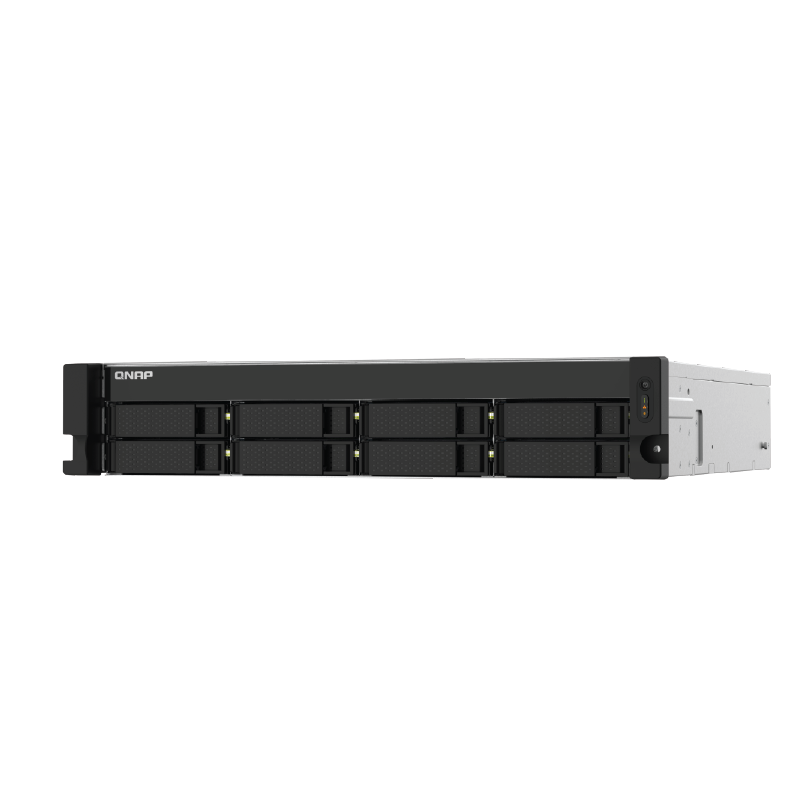

QNAP TS-832PXU-RP 8-Bay NAS

ราคา 51,500 บาท
ราคา 53,900 บาท

QNAP TS-832PXU-RP Quad-core 1.7GHz rackmount NAS with 10GbE SFP+ and 2.5GbE ports and redundant power supply for SMB IT environments

CPU : AnnapurnaLabs Alpine AL324

RAM : 4 GB

รายละเอียดสินค้า          สินค้า Pre order 30-60วัน      *** เลือกซื้อ Harddisk สำหรับNas คลิกได้เลยครับ ***


TS-832PXU-RP-4G

CPU
AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor
CPU Architecture
64-bit ARM
Floating Point Unit
Y
Encryption Engine
Y
System Memory
4 GB UDIMM DDR4 (1 x 4 GB)
Maximum Memory
16 GB (1 x 16 GB)
Memory Slot
1 x UDIMM DDR4
Flash Memory
512 MB (Dual boot OS protection)
Drive Bay
8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility
3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
 2.5-inch SATA solid state drives
Hot-swappable
Y
M.2 Slot
Optional via a PCIe adapter
SSD Cache Acceleration Support
Y
2.5 Gigabit Ethernet Port (2.5G/1G/100M)
2 (2.5G/1G/100M/10M)
10 Gigabit Ethernet Port
2 x 10GbE SFP+
Wake on LAN (WOL)

Y Only the 2.5GbE port

Jumbo Frame
Y
PCIe Slot
1
Slot 1: PCIe Gen 2 x2
PCIe bandwidth limitations will restrict the NAS 10GbE performance.
 Card dimensions for PCIe slot:220 x 68.9x 18.76 mm / 8.67 x 2.71 x 0.74 inches.
USB 3.2 Gen 1 port
4
Form Factor
2U Rackmount
LED Indicators
HDD 1-8, Status, LAN, Storage expansion
Buttons
Power, Reset
Dimensions (HxWxD)
88.6 × 432 × 511 mm
 Excludes ear hook and the protruding part of the Power Supply Unit.
Weight (Net)
12.47 kg
Weight (Gross)
14.61 kg
Operating Temperature
0 - 40 °C (32°F - 104°F)
Storage Temperature
-20 - 70°C (-4°F - 158°F)
Relative Humidity
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit
250W (x2) PSU, 100 - 240V
Power Consumption: Operating Mode, Typical
69.191 W
 Tested with drives fully populated.
Fan
2 x 70mm, 12VDC
System Warning
Buzzer
Standard Warranty
3
Max. Number of Concurrent Connections (CIFS) - with Max. Memory
700
